Welding
Ready-to-install welded assemblies that are fully machined are an important part of our product range. Our experienced and regularly tested welders have a wide range of approvals for a wide variety of material groups and seam types.
Using the MAG, TIG and submerged arc welding processes for special applications, we can weld structural steels, stainless steels and even aluminum.
Welding manipulators for component weights of up to 4000 kg enable us to handle the components efficiently. Our welding engineers and welding specialists provide the theoretical expertise.
Compliance with the quality standards for welding in our company is guaranteed by our certifications in accordance with DIN EN ISO 3834-2 and for special applications in the railroad sector according to DIN EN 15085-2 CL2 documented.
Welding shop at a glance
- MAG & TIG welding processes
- Submerged arc welding for longitudinal seams on round material
- Arc welding with stick electrodes
- Materials: structural steel, stainless steels, aluminum
- Annealing furnace for preheating before welding
- Unit weights up to 4 t
- Welding supervision in-house
-
Certifications:
Welding quality requirements in accordance with DIN EN ISO 3834-2:2021 &
Welding of rail vehicles and vehicle parts according to EN15085-2 CL2
Facilities and equipment

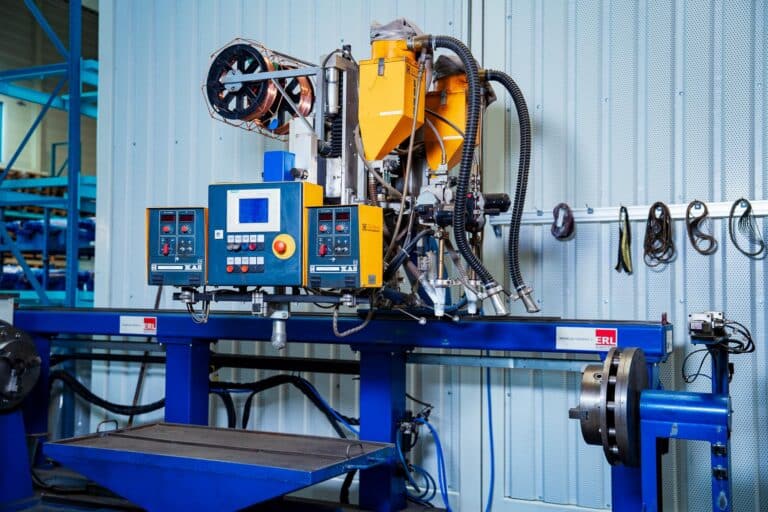

UP longitudinal seam welding system
Work area:
Welding length 3000 mm, Da max 1300 mm
Equipment & features:
Automatic dividing table
Year of construction: 2006

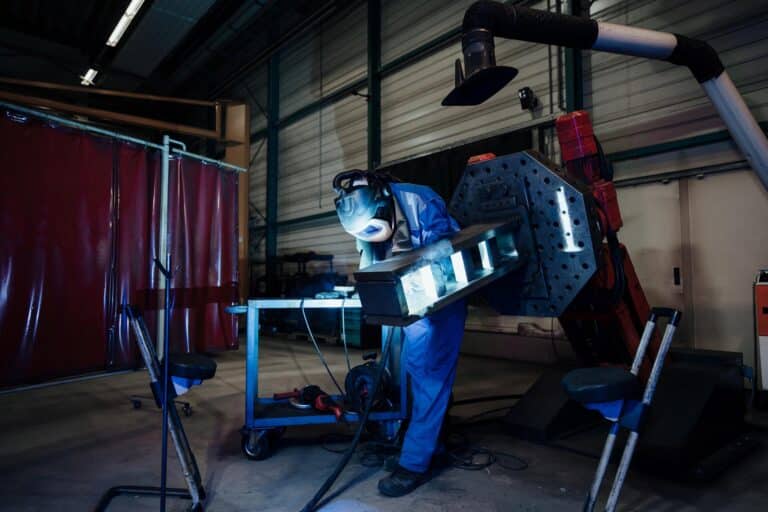

Demmeler Ergonomix M4000 welding manipulator
Equipment & features:
Teach control, load capacity 4 t, swivel range 180°
Year of construction: 2018

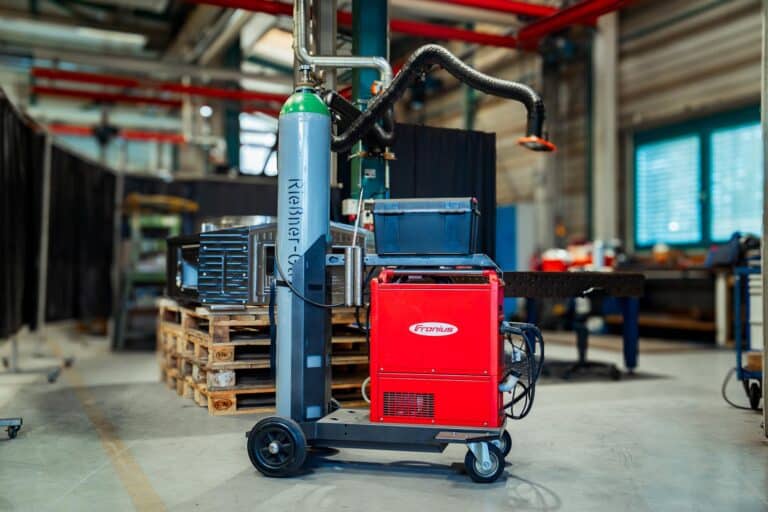

Fronius TPS 500i welding power source
Equipment & features:
MIG / MAG welding current range 3 – 500 A
TIG welding current range 3 – 500 A
Year of construction: 2017

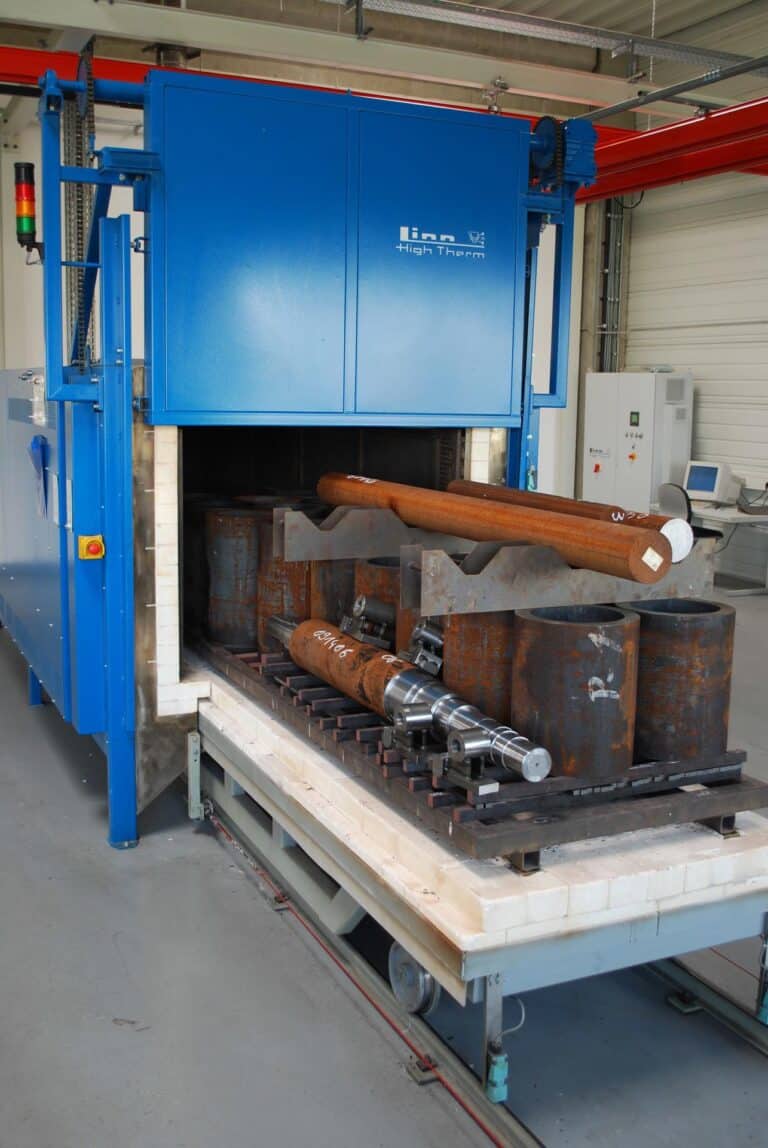

Air circulation chamber oven Linn High Therm
Work area:
x 1000 mm, y 900 mm, z 4000 mm
Equipment & features:
Retractable bogie hearth, process logging
Year of construction: 2006
