For the important production technology of grinding, we also have our own department with department with CNC grinding machines.
External cylindrical grinding of components up to Ø1000 mm and 6 m in length, with unit weights of up to 8 tons is possible. One machine with B-axis and two grinding wheels enables us to grind different grinding operations or components coated with different materials in one clamping.
With the possibilities of in-process measurement, we can achieve maximum accuracy.
Several grinding spindles for a wide range of diameters and lengths are available for internal cylindrical grinding on a universal internal/external cylindrical grinding machine.
The programmable B-axis can also be used to grind conical and spherical contours. Surface grinding up to dimensions of 3000×800 mm and centering grinding round off the processing possibilities of our grinding department.
Grinding shop at a glance

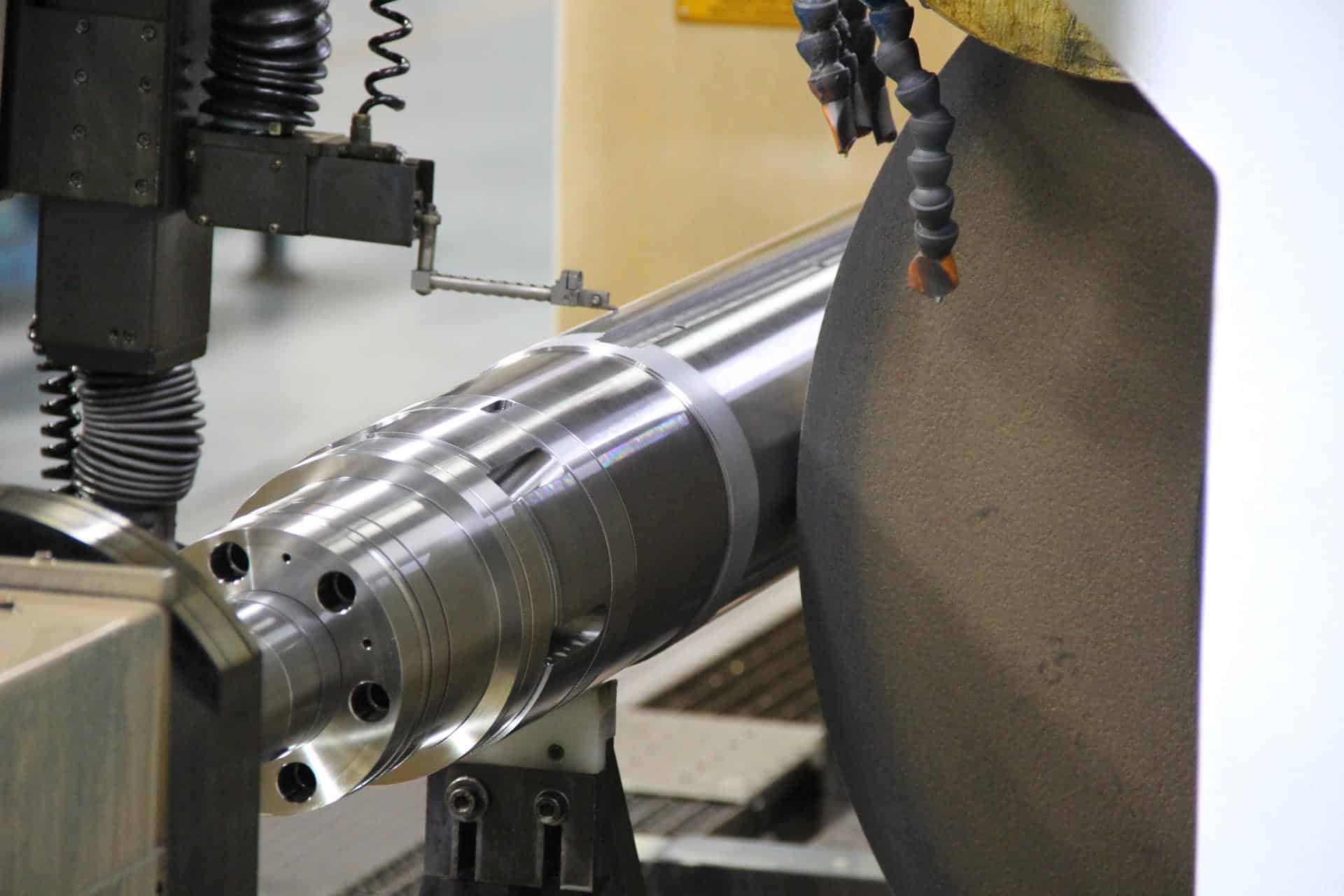

- External cylindrical grinding up to a length of 6000 mm and a diameter of 1000 mm
- Internal cylindrical grinding of various diameters and lengths
- Flat grinding up to a length of 3000 mm and a width of 800 mm
- Unit weights up to 8t
- Finishing up to surface quality Ra 0.1 / Rz 0.4
- Grinding and measuring in the process
Our machinery in the grinding department

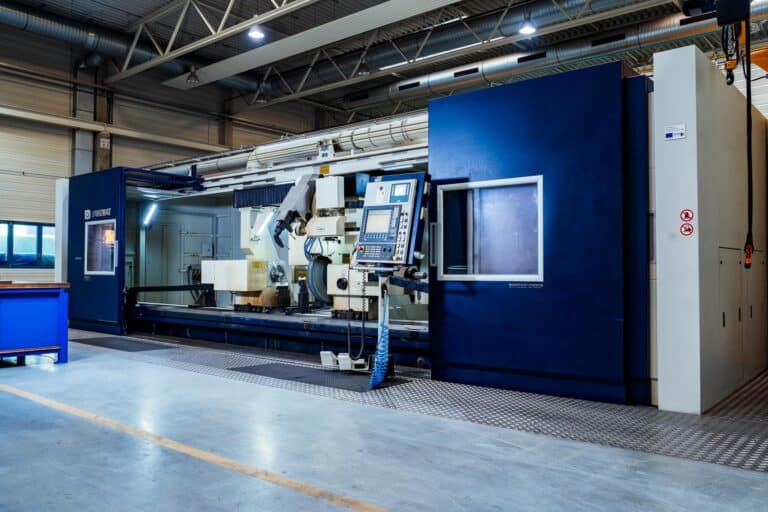

CNC external cylindrical grinding machine DANOBAT WT-92-B8
Work area:
Da max 1000 mm, L max 6000 mm
Equipment & features:
3 bezels, patented measuring arm
Grinding and measuring in the process
Year of construction: 2013

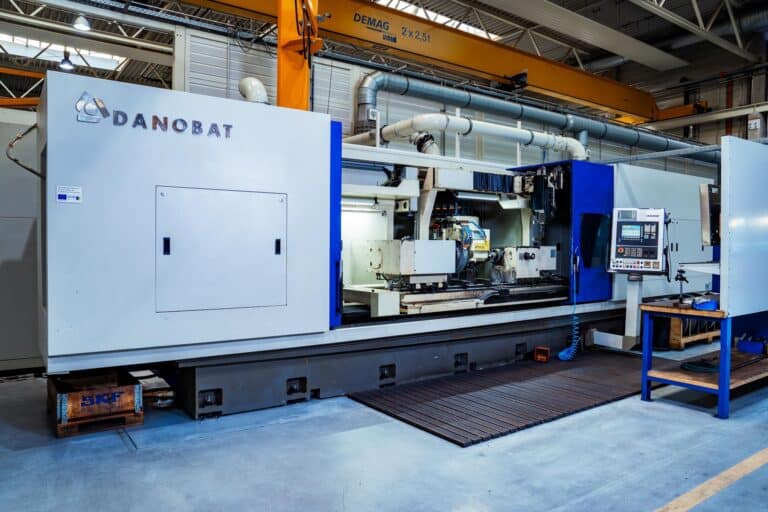

CNC external & internal cylindrical grinding machine DANOBAT HG-72-B10
Work area:
Da max 1000 mm, L max 3000 mm
Equipment & features:
3 bezels, automatic measuring head,
Internal cylindrical grinding device
Year of construction: 2006

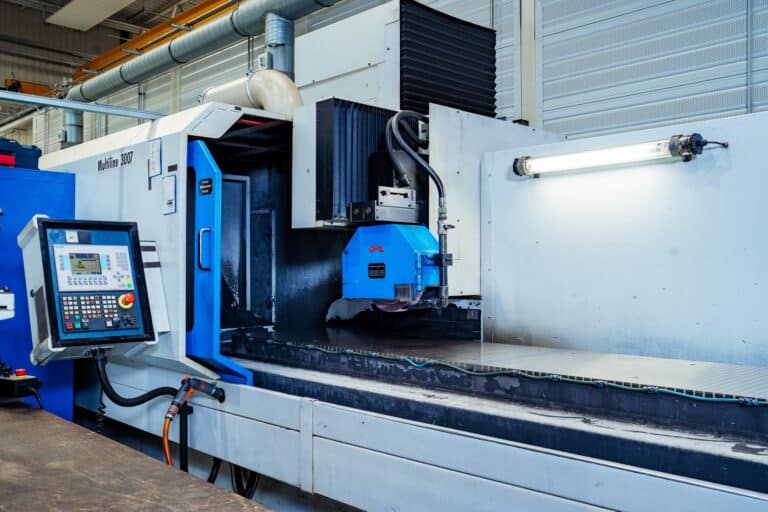

Multiline 3007 surface grinder
Work area:
x 3000 mm, y 800 mm, z 600 mm
Year of construction: 2003

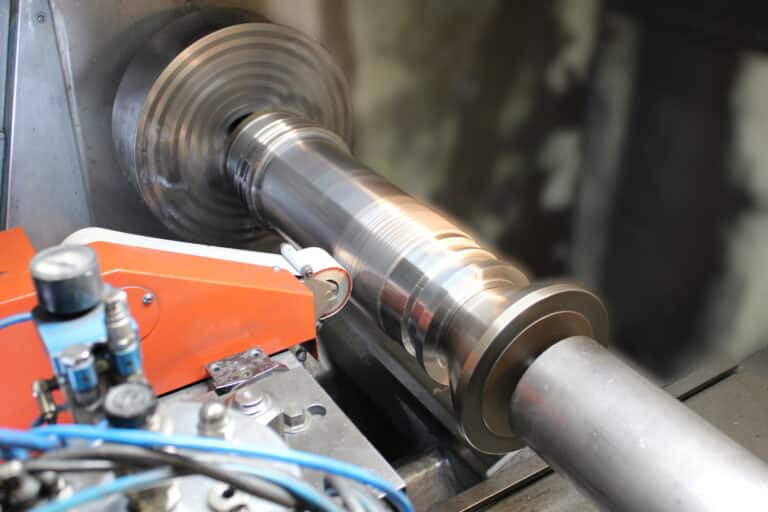

Supfina 210 belt finishing device
Work area:
up to surface finish Ra 0.1 / Rz 0.4
Equipment & features:
Vibration frequency 1100 DH/min
Year of construction: 2023
